Index management
Topics
Note
Before using the Index Management module is necessary to set an appropriate password for the Logserver user in the following file: /usr/share/logserver-gui/curator/curator.yml
The Index Management module allows you to manage indexes and perform activities such as:
Closing indexes,
Delete indexes,
Performing a merge operation for index,
Shrink index shards,
Index rollover.
The Index Management module is accessible through the main menu tab.

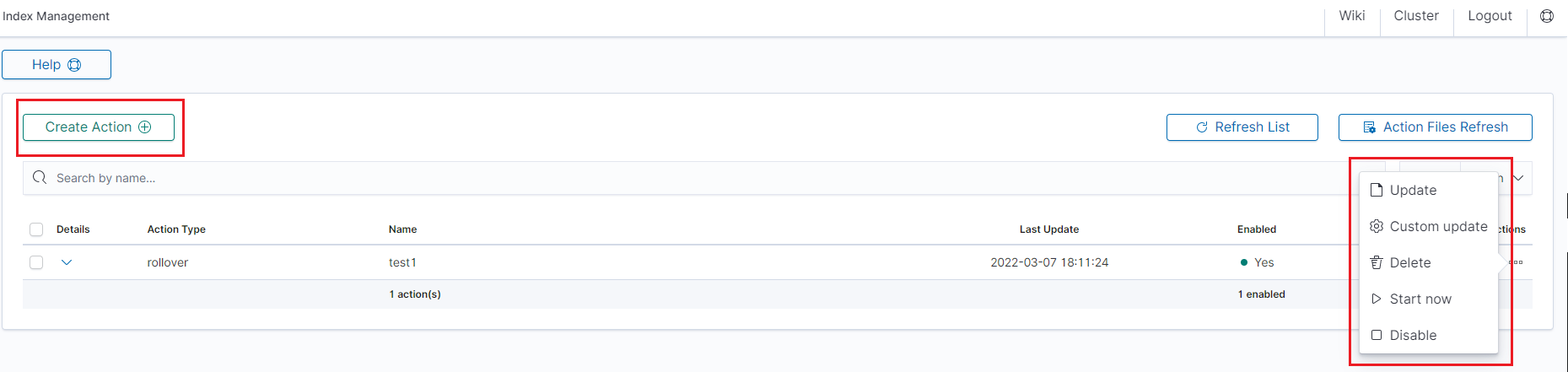

The main module window allows you to create new Create Task tasks, view and manage created tasks, that is:
Update,
Custom update,
Delete,
Start now,
Disable / Enable.

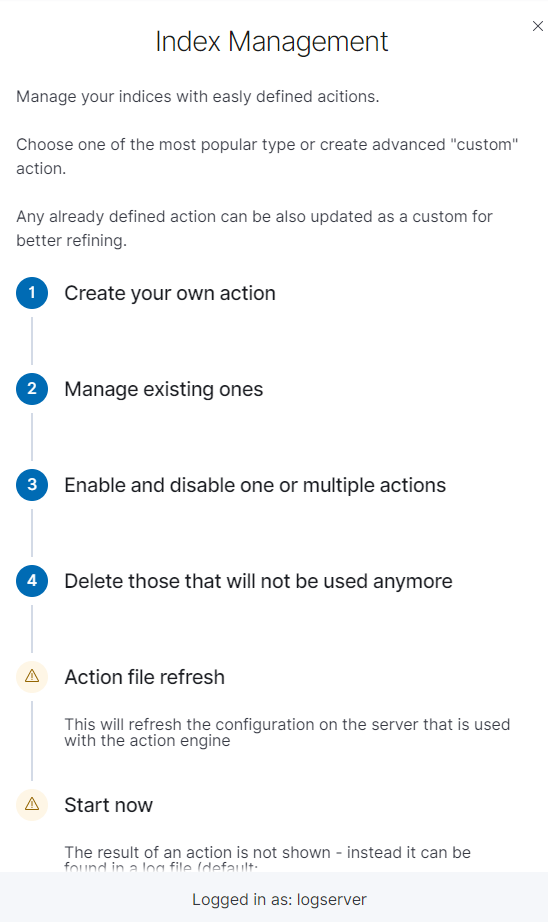

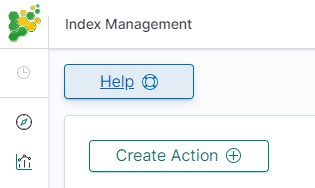

Note Use the Help button
By using the Help button you can get a detailed description of the current actions

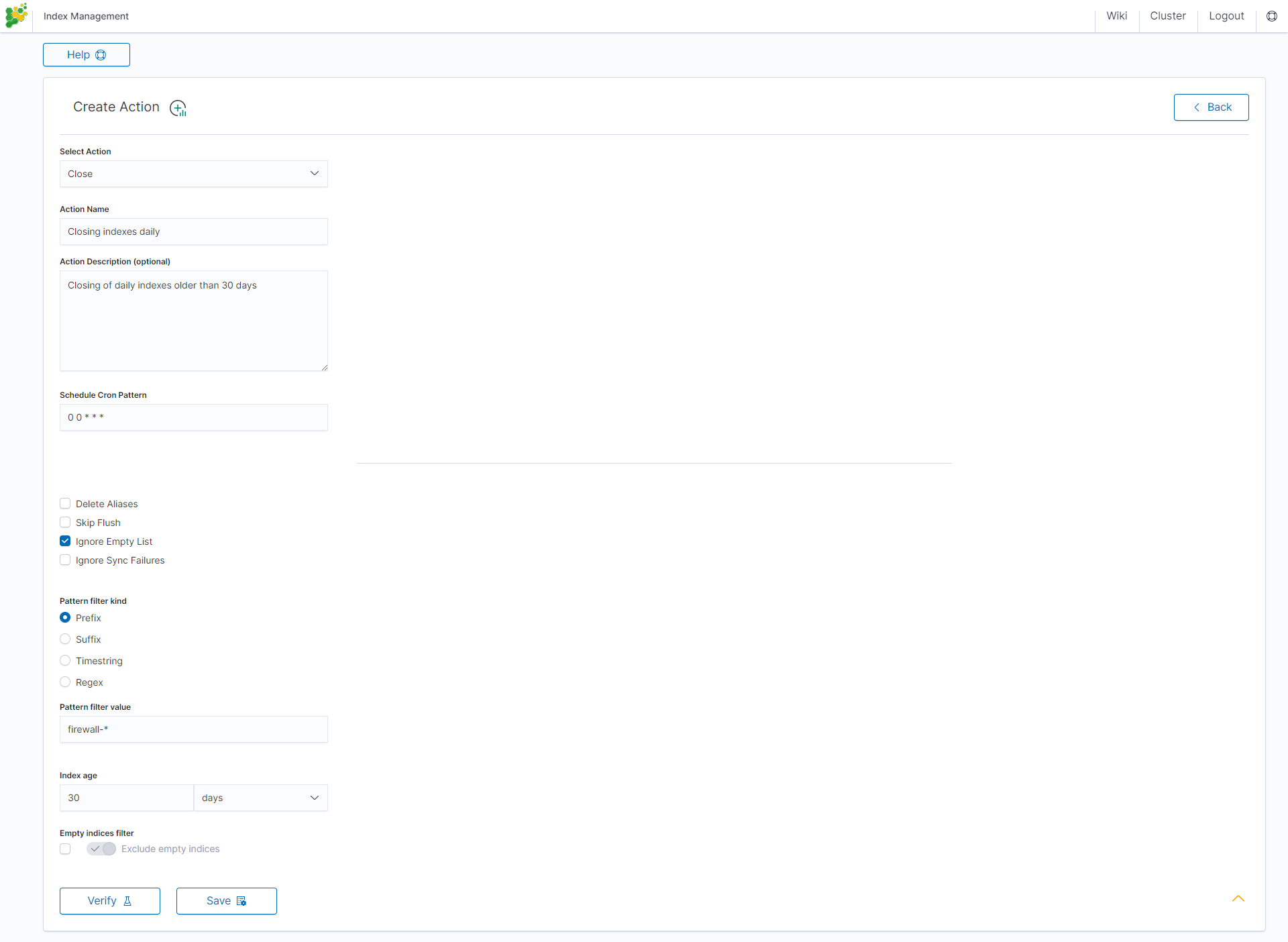

Close action
This action closes the selected indices and optionally deletes associated aliases beforehand.
Settings required:
Action Name
Schedule Cron Pattern - it sets when the task is to be executed, to decode cron format use the online tool: https://crontab.guru,
Pattern filter kind - it sets the index filtertype for the task,
Pattern filter value - it sets the value for the index filter,
Index age - it sets the index age for the task.
Optional settings:
Timeout override
Ignore Empty List
Continue if exception
Closed indices filter
Empty indices filter

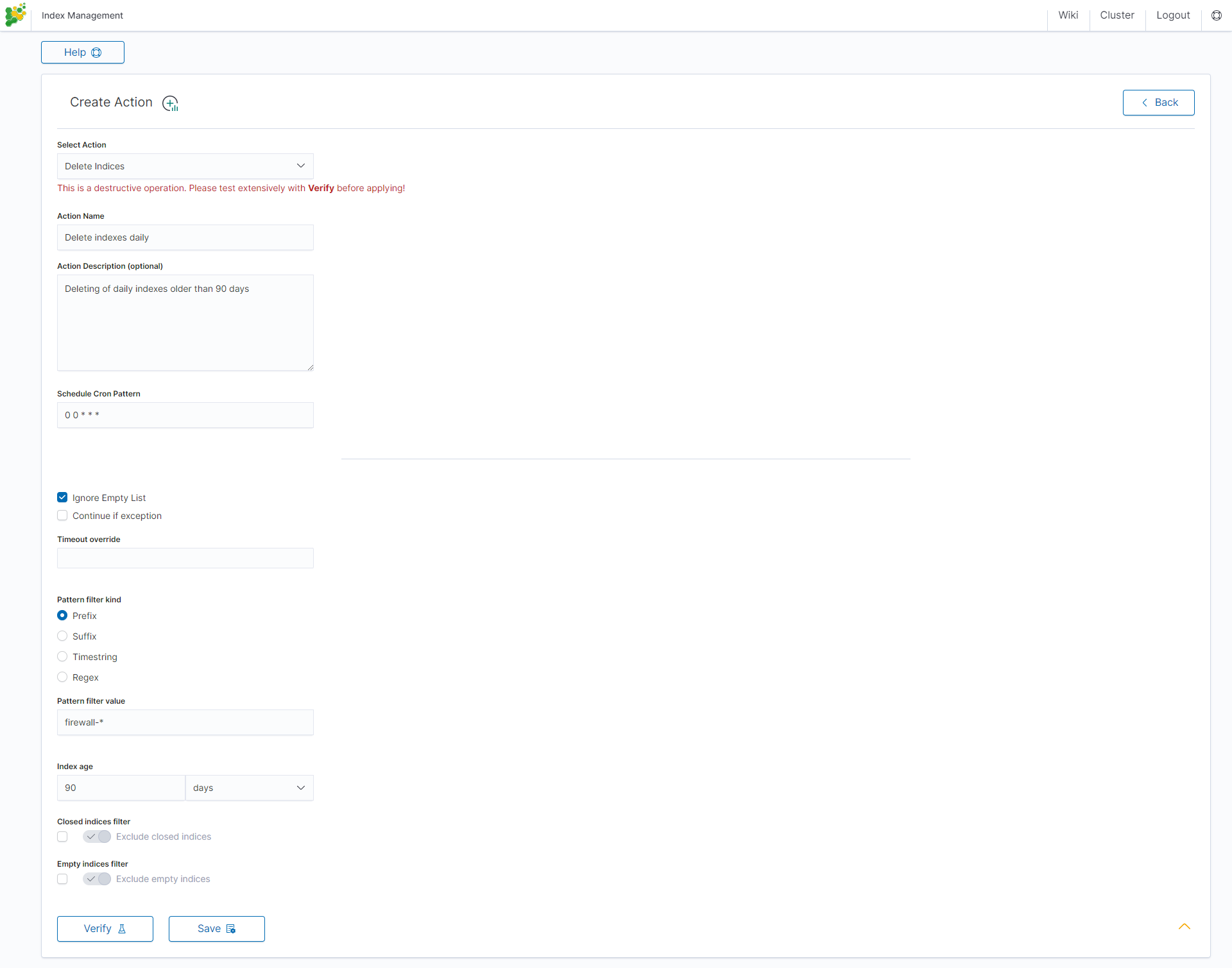

Delete action
This action deletes the selected indices.
Settings required:
Action Name
Schedule Cron Pattern - it sets when the task is to be executed, to decode cron format use the online tool: https://crontab.guru/,
Pattern filter kind - it sets the index filtertype for the task,
Pattern filter value - it sets the value for the index filter,
Index age - it sets the index age for the task.
Optional settings:
Delete Aliases
Skip Flush
Ignore Empty List
Ignore Sync Failures

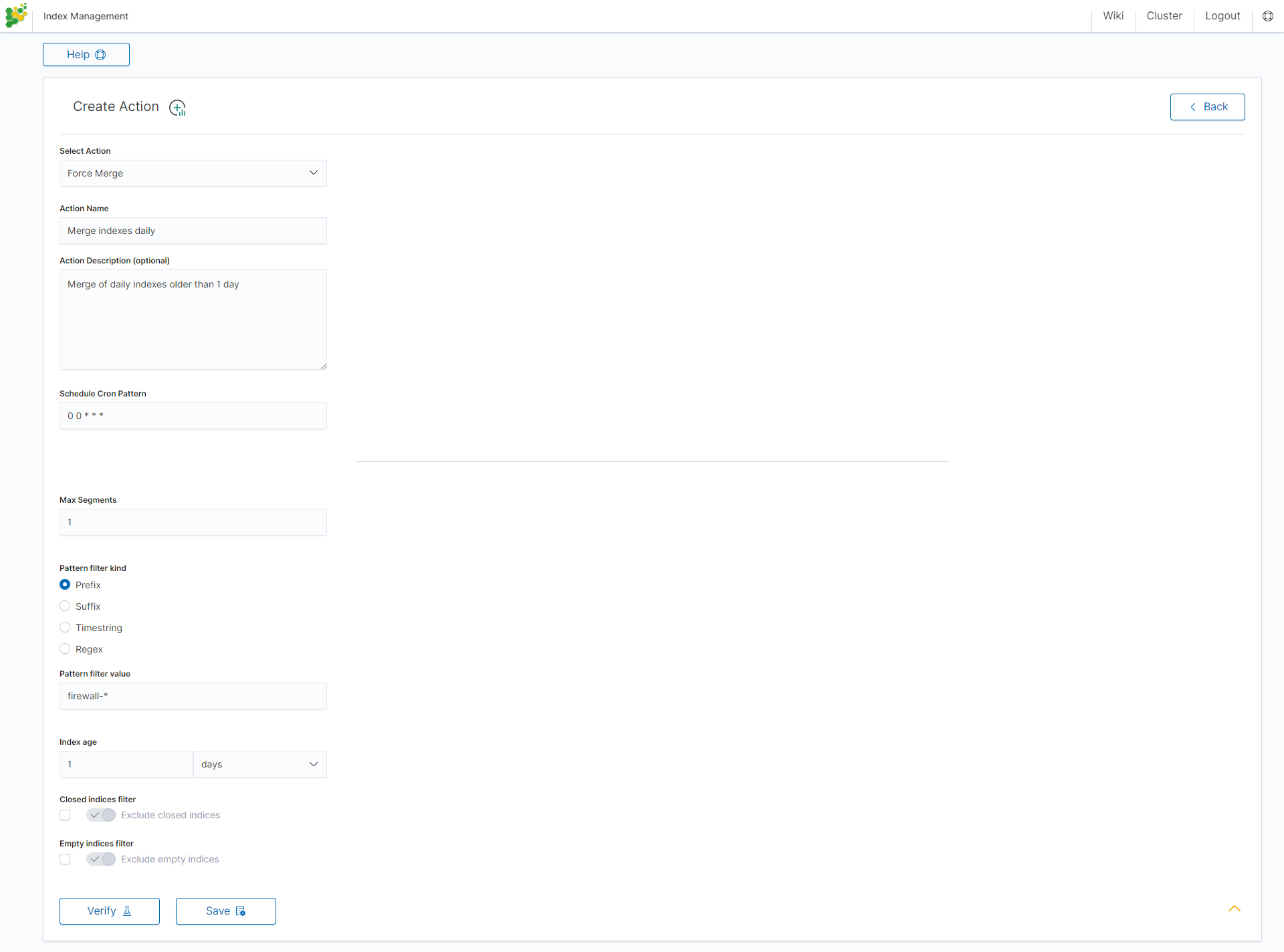

Force Merge action
This action performs a Force Merge on the selected indices, merging them in the specific number of segments per shard.
Settings required:
Action Name
Schedule Cron Pattern - it sets when the task is to be executed, to decode cron format use the online tool: https://crontab.guru/,
Max Segments - it sets the number of segments for the shard,
Pattern filter kind - it sets the index filtertype for the task,
Pattern filter value - it sets the value for the index filter,
Index age - it sets the index age for the task.
Optional settings:
Ignore Empty List
Ignore Sync Failures

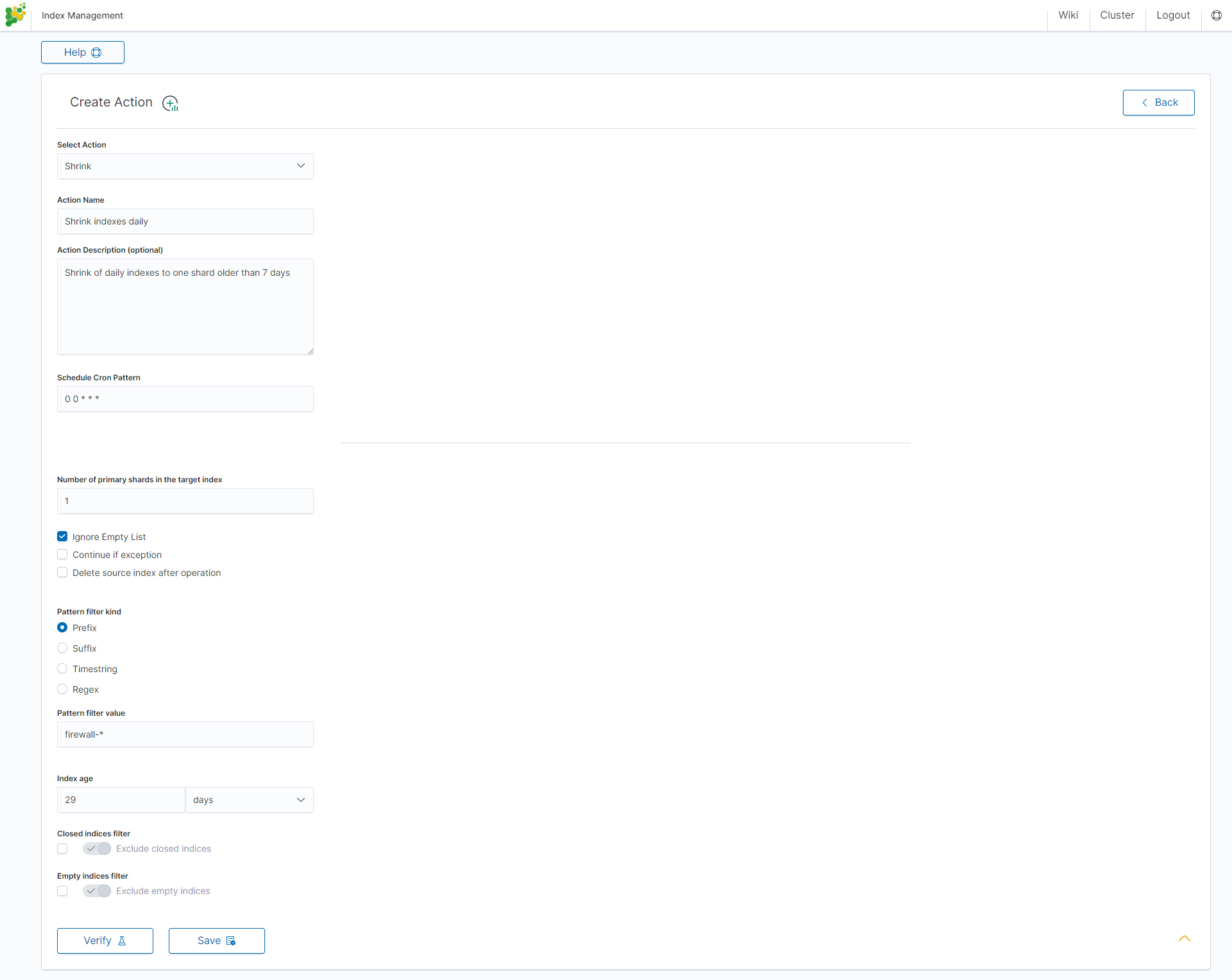

Shrink action
Shrinking an index is a good way to reduce the total shard count in your cluster.
Several conditions need to be met in order for index shrinking to take place:
The index must be marked as read-only
A (primary or replica) copy of every shard in the index must be relocated to the same node
The cluster must have health green
The target index must not exist
The number of primary shards in the target index must be a factor of the number of primary shards in the source index.
The source index must have more primary shards than the target index.
The index must not contain more than 2,147,483,519 documents in total across all shards that will be shrunk into a single shard on the target index as this is the maximum number of docs that can fit into a single shard.
The node handling the shrink process must have sufficient free disk space to accommodate a second copy of the existing index.
The task will try to meet these conditions. If it is unable to meet them all, it will not perform a shrink operation.
Settings required:
Action Name
Schedule Cron Pattern - it sets when the task is to be executed, to decode cron format use the online tool: https://crontab.guru/,
Number of primary shards in the target index - it sets the number of shared for the target index,
Pattern filter kind - it sets the index filtertype for the task,
Pattern filter value - it sets the value for the index filter,
Index age - it sets the index age for the task.
Optional settings:
Ignore Empty List
Continue if exception
Delete source index after operation
Closed indices filter
Empty indices filter

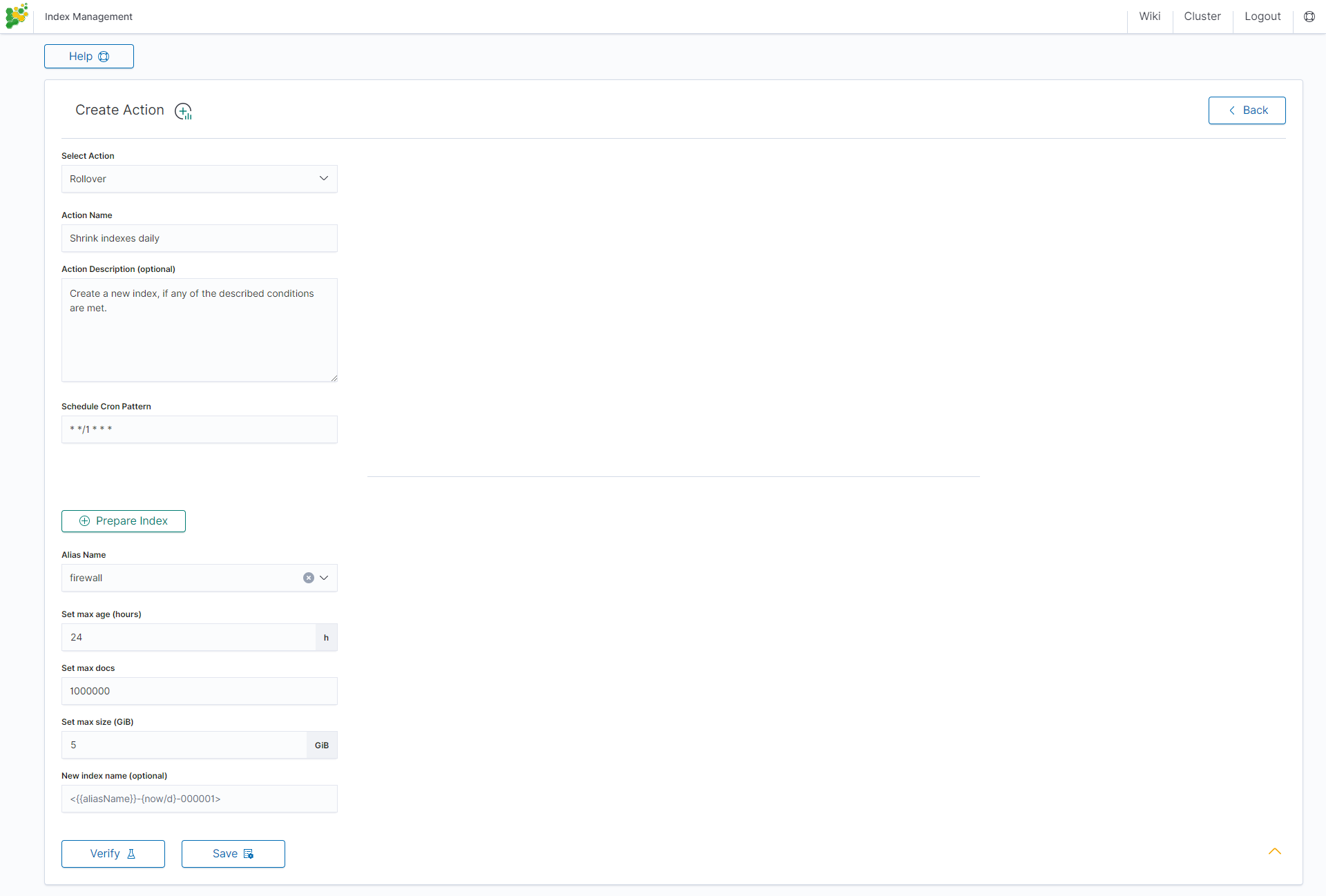

Rollover action
This action uses the Data Node Rollover API to create a new index if any of the described conditions are met.
Settings required:
Action Name
Schedule Cron Pattern - it sets when the task is to be executed, to decode cron format use the online tool: https://crontab.guru/,
Alias Name - it sets an alias for the index,
Set max age (hours) - it sets an age for the index after then index will rollover,
Set max docs - it sets a number of documents for the index after which the index will rollover,
Set max size (GiB) - it sets index size in GB after which the index will rollover.
Optional settings:
New index name (optional)
Index rollover
Using the rollover function, you can make changes to removing documents from the audit, .agents, and alert* indexes.

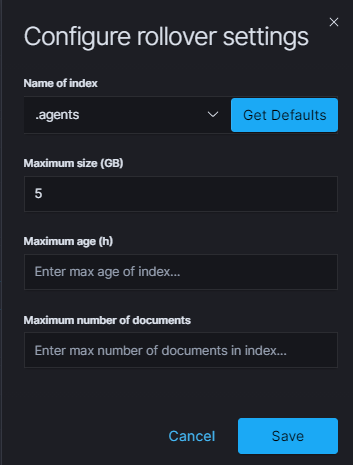

You can configure the rollover by going to the Config module, then clicking the Settings tab, going to the Index rollover settings section, and clicking the Configure button:
You can set the following retention parameters for the above indexes:
Maximum size (GB);
Maximum age (h);
Maximum number of documents.

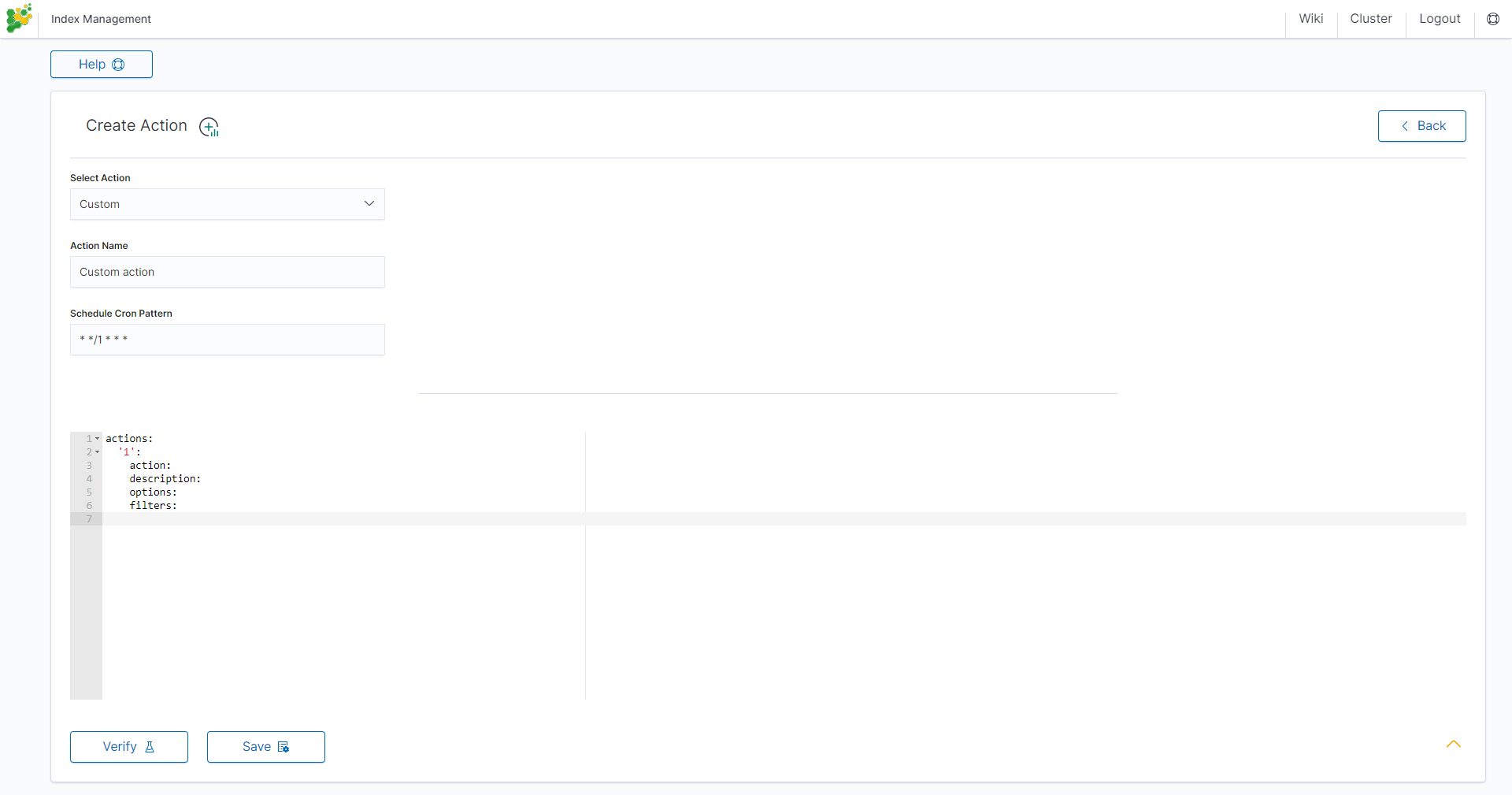

Custom action
To create a Custom action, select Custom from Select Action, enter a name in the Action Name field, and set the schedule in the Schedule Cron Pattern field. In the edit field, enter the definition of a custom action:
Custom Action examples:
Open index
actions:
1:
action: open
description: >-
Open indices older than 30 days but younger than 60 days (based on index
name), for syslog- prefixed indices.
options:
timeout_override:
continue_if_exception: False
disable_action: True
filters:
- filtertype: pattern
kind: prefix
value: syslog-
exclude:
- filtertype: age
source: name
direction: older
timestring: '%Y.%m.%d'
unit: days
unit_count: 30
exclude:
- filtertype: age
source: name
direction: younger
timestring: '%Y.%m.%d'
unit: days
unit_count: 60
exclude:
Replica reduce
actions:
1:
action: replicas
description: >-
Reduce the replica count to 0 for syslog- prefixed indices older than
10 days (based on index creation_date)
options:
count: 0
wait_for_completion: False
timeout_override:
continue_if_exception: False
disable_action: True
filters:
- filtertype: pattern
kind: prefix
value: syslog-
exclude:
- filtertype: age
source: creation_date
direction: older
unit: days
unit_count: 10
exclude:
Index allocation
actions:
1:
action: allocation
description: >-
Apply shard allocation routing to 'require' 'tag=cold' for hot/cold node
setup for syslog- indices older than 3 days, based on index_creation
date
options:
key: tag
value: cold
allocation_type: require
disable_action: True
filters:
- filtertype: pattern
kind: prefix
value: syslog-
- filtertype: age
source: creation_date
direction: older
unit: days
unit_count: 3
Cluster routing
actions:
1:
action: cluster_routing
description: >-
Disable shard routing for the entire cluster.
options:
routing_type: allocation
value: none
setting: enable
wait_for_completion: True
disable_action: True
2:
action: (any other action details go here)
...
3:
action: cluster_routing
description: >-
Re-enable shard routing for the entire cluster.
options:
routing_type: allocation
value: all
setting: enable
wait_for_completion: True
disable_action: True
Preinstalled actions
Close-Daily
This action closes the selected indices older than 93 days and optionally deletes associated aliases beforehand. For example, if it is today 21 December this action will close or optionally delete every index older than 30 September of the same year, action starts every day at 01:00 AM.
Action type: CLOSE
Action name: Close-Daily
Action Description (optional): Close daily indices older than 90 days
Schedule Cron Pattern : 0 1 * * *
Delete Aliases: enabled
Skip Flush: disabled
Ignore Empty List: enabled
Ignore Sync Failures: enabled
Pattern filter kind: Timestring
Pattern filter value: %Y.%m$
Index age: 93 days
Empty indices filter: disable
Close-Monthly
This action closes the selected indices older than 93 days (3 months)and optionally deletes associated aliases beforehand. If it today is 21 December, this action will close or optionally delete every index older than October the same year, the action starts every day at 01:00 AM.
Action type: CLOSE
Action name: Close-Daily
Action Description (optional): Close daily indices older than 93 days
Schedule Cron Pattern: 0 1 * * *
Delete Aliases: enabled
Skip Flush: disabled
Ignore Empty List: enabled
Ignore Sync Failures: enabled
Pattern filter kind: Timestring
Pattern filter value: %Y.%m$
Index age: 93 days
Empty indices filter: disable
Disable-Refresh-Older-Than-Days
This action disables the daily refresh of indices older than 2 days. the action is performed daily at 01:00.
Action type: CUSTOM
Action name: Disable-Refresh-Older-Than-Days
Schedule Cron Pattern: 0 1 * * *
YAML:
actions:
'1':
action: index_settings
description: Disable refresh for older daily indices
options:
index_settings:
index:
refresh_interval: -1
ignore_unavailable: False
ignore_empty_list: true
preserve_existing: False
filters:
- filtertype: pattern
kind: timestring
value: '%Y.%m.%d$'
- filtertype: age
source: creation_date
direction: older
unit: days
unit_count: 2
Disable-Refresh-Older-Than-Month
This action forces the daily merge of indices older than one month. The action is performed daily at 01:00.
Action type: CUSTOM
Action name: Disable-Refresh-Older-Than-Month
Schedule Cron Pattern: 0 1 * * *
YAML:
actions:
'1':
action: index_settings
description: Disable refresh for older monthly indices
options:
index_settings:
index:
refresh_interval: -1
ignore_unavailable: False
ignore_empty_list: true
preserve_existing: False
filters:
- filtertype: pattern
kind: timestring
value: '%Y.%m$'
- filtertype: age
source: creation_date
direction: older
unit: days
unit_count: 32
Force-Merge-Older-Than-Days
This action forces the daily merge of indices older than two days. The action is performed daily at 01:00.
Action type: CUSTOM
Action name: Force-Merge-Older-Than-Days
Schedule Cron Pattern: 0 1 * * *
YAML:
actions:
'1':
action: forcemerge
description: Force merge on older daily indices
options:
max_num_segments: 1
ignore_empty_list: true
continue_if_exception: false
delay: 60
filters:
- filtertype: pattern
kind: timestring
value: '%Y.%m.%d$'
- filtertype: age
source: creation_date
direction: older
unit: days
unit_count: 2
- filtertype: forcemerged
max_num_segments: 1
exclude: True
Force-Merge-Older-Than-Months
This action forces the daily merge of indices older than one month. The action is performed daily at 01:00.
Action type: CUSTOM
Action name: Force-Merge-Older-Than-Months
Schedule Cron Pattern: 0 1 * * *
YAML:
actions:
'1':
action: forcemerge
description: Force merge on older monthly indices
options:
max_num_segments: 1
ignore_empty_list: true
continue_if_exception: false
delay: 60
filters:
- filtertype: pattern
kind: timestring
value: '%Y.%m$'
- filtertype: age
source: creation_date
direction: older
unit: days
unit_count: 32
- filtertype: forcemerged
max_num_segments: 1
exclude: True
Logtrail-default-delete
This action leaves only two last indices from each logtrail rollover index ( allows for up to 10GB of data). The action is performed daily at 03:30.
Action type: CUSTOM
Action name: Logtrail-default-delete
Schedule Cron Pattern: 30 3 * * *
YAML:
actions:
'1':
action: delete_indices
description: >-
Leave only two last indices from each logtrail rollover index - allows for up to
10GB data.
options:
ignore_empty_list: true
continue_if_exception: true
filters:
- filtertype: count
count: 2
pattern: '^logtrail-(.*?)-\d{4}.\d{2}.\d{2}-\d+$'
reverse: true
Logtrail-default-rollover
This action rollover default Logtrail indices. The action is performed every 5 minutes.
Action type: CUSTOM
Action name: Logtrail-default-rollover
Schedule Cron Pattern: 5 * * * *
YAML:
actions:
'1':
action: rollover
description: >-
This action works on default logtrail indices. It is recommended to enable
it.
options:
name: logtrail-alert
conditions:
max_size: 5GB
continue_if_exception: true
allow_ilm_indices: true
'2':
action: rollover
description: >-
This action works on default logtrail indices. It is recommended to enable
it.
options:
name: logtrail-data-node
conditions:
max_size: 5GB
continue_if_exception: true
allow_ilm_indices: true
'3':
action: rollover
description: >-
This action works on default logtrail indices. It is recommended to enable
it.
options:
name: logtrail-gui
conditions:
max_size: 5GB
continue_if_exception: true
allow_ilm_indices: true
'4':
action: rollover
description: >-
This action works on default logtrail indices. It is recommended to enable
it.
options:
name: logtrail-probe
conditions:
max_size: 5GB
continue_if_exception: true
allow_ilm_indices: true
